Up for sale is a OEM Thomas 24VDC Fluidic Control Chassis Module.
This integrated pneumatic assembly serves as a sub-system for high-end laboratory instrumentation (commonly found in diagnostic automation, hematology analyzers, or Becton Dickinson flow cytometer lines).

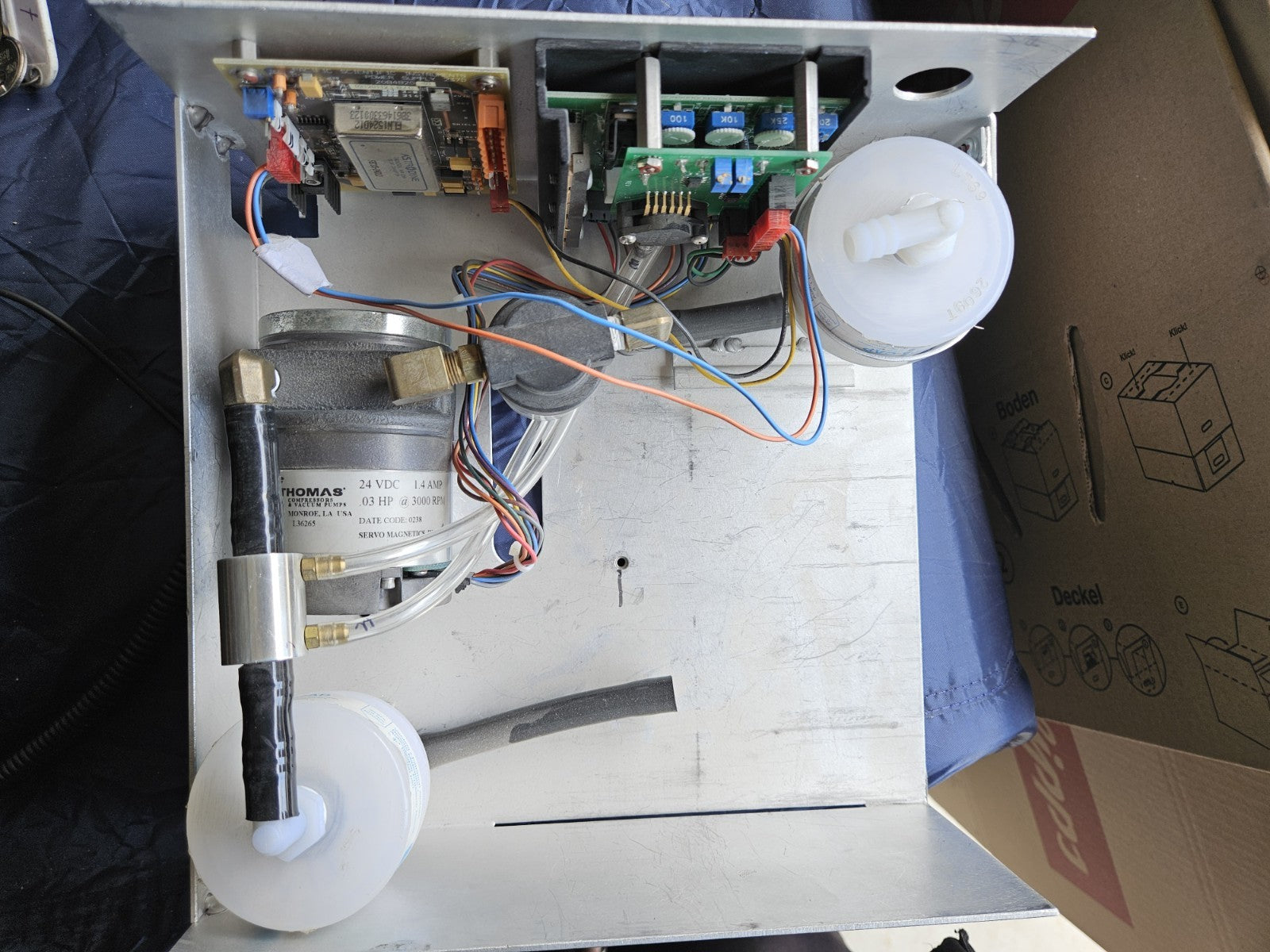

The entire unit is pre-wired, plumbed, and securely mounted onto a custom-cut aluminum bracket chassis.
Comprehensive Component Breakdown & Technical Specs:1.

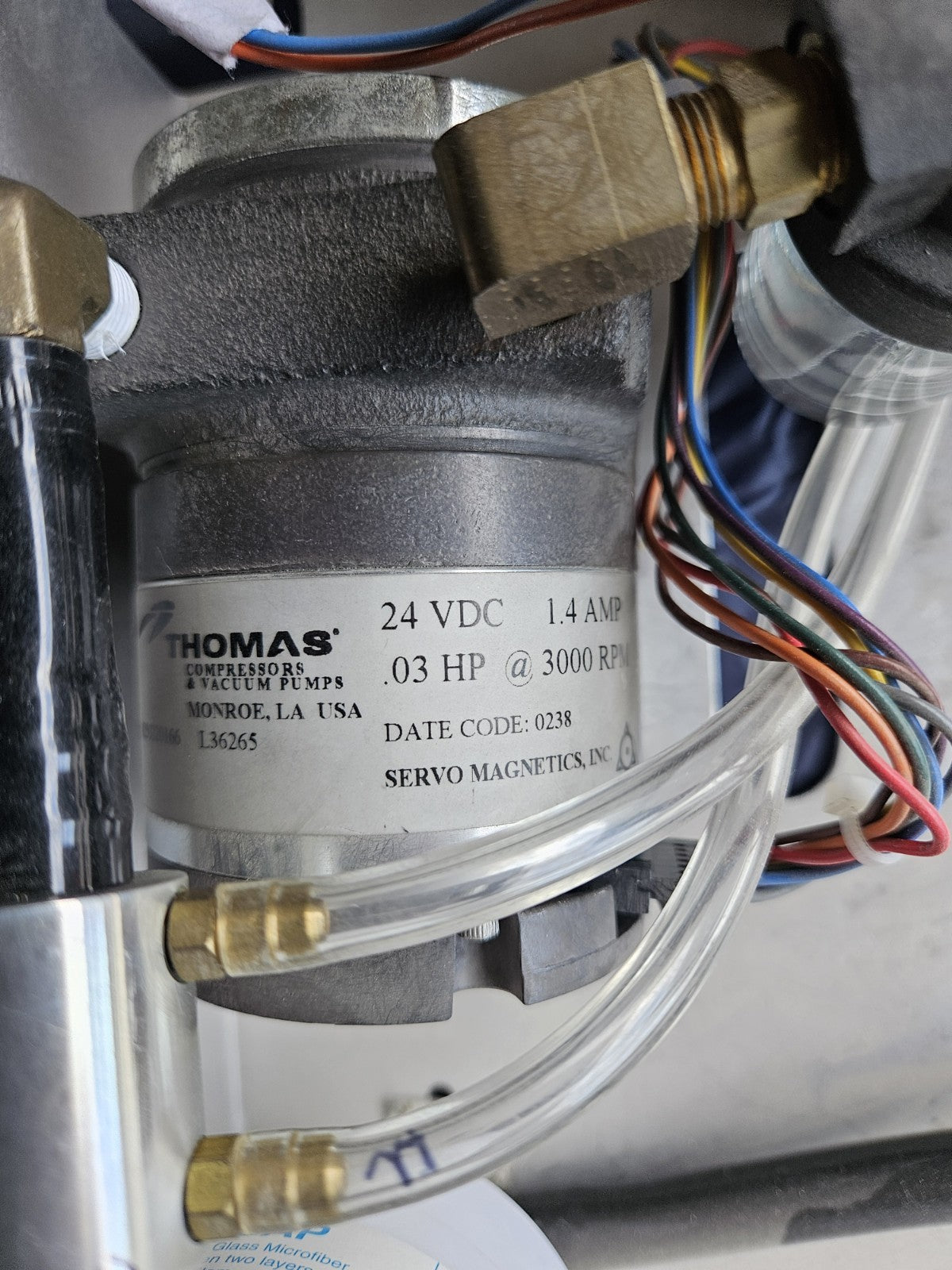

Core Compressor / Vacuum PumpBrand: Thomas PumpsModel/Part No: 130265Power Specifications: 24 VDC | 4.4A max (approx.)Motor Power: 0.03 HPCycle Rate: 3000 RPMDesign Features: Lubricated/Oil-less operation, equipped with high-torque permanent servo magnets for precise fluid/air movement regulation.

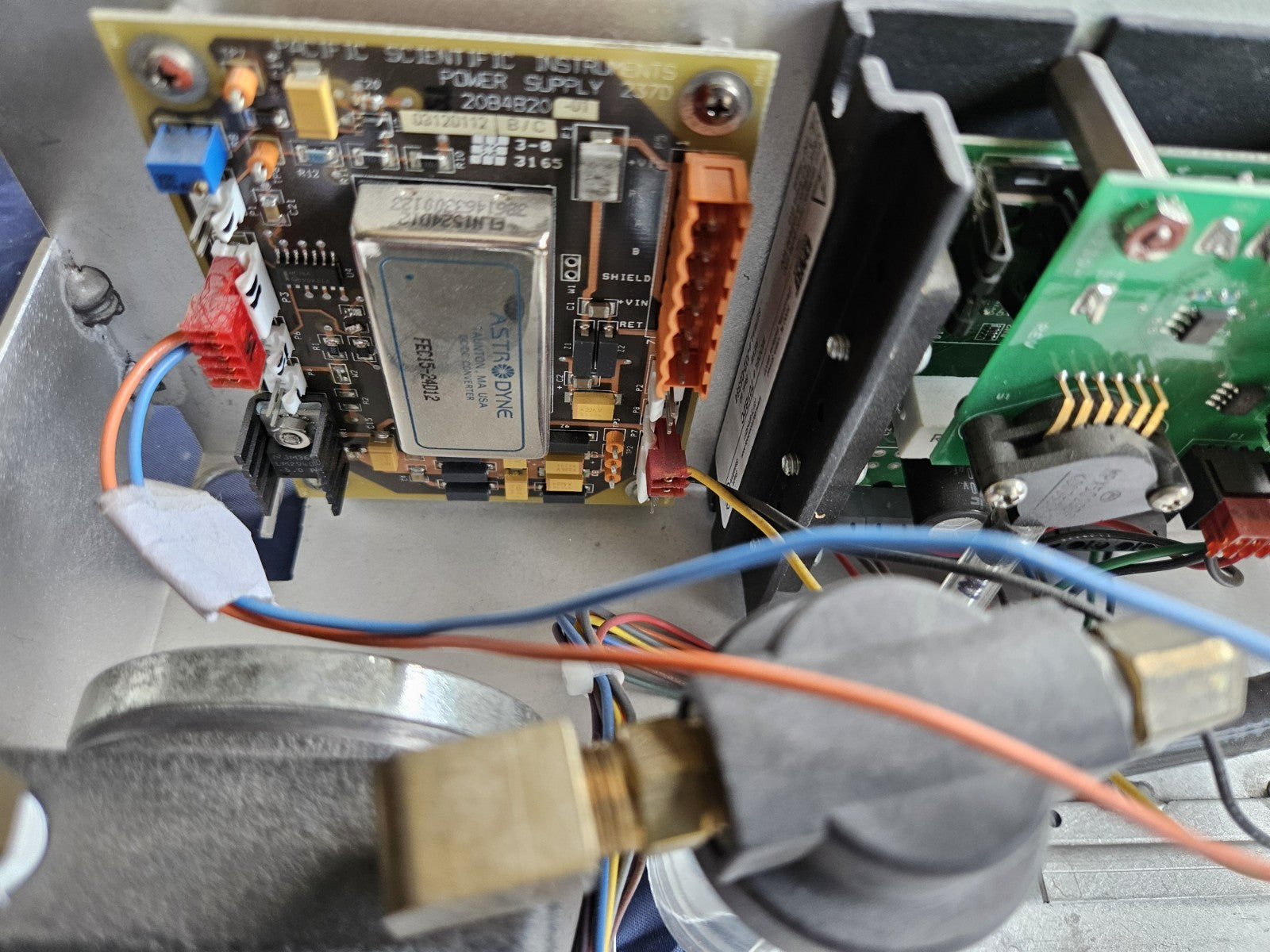

2. Electronic Control & Driver Circuitry (Upper Section)Main Control PCB: Top left printed circuit board handling power management and terminal wire interfacing.Secondary Regulating Board: Top right PCB equipped with precision potentiometers (labeled 100, 10K, 25K tuning dials) and capacitors for motor speed tuning or pressure thresholds.

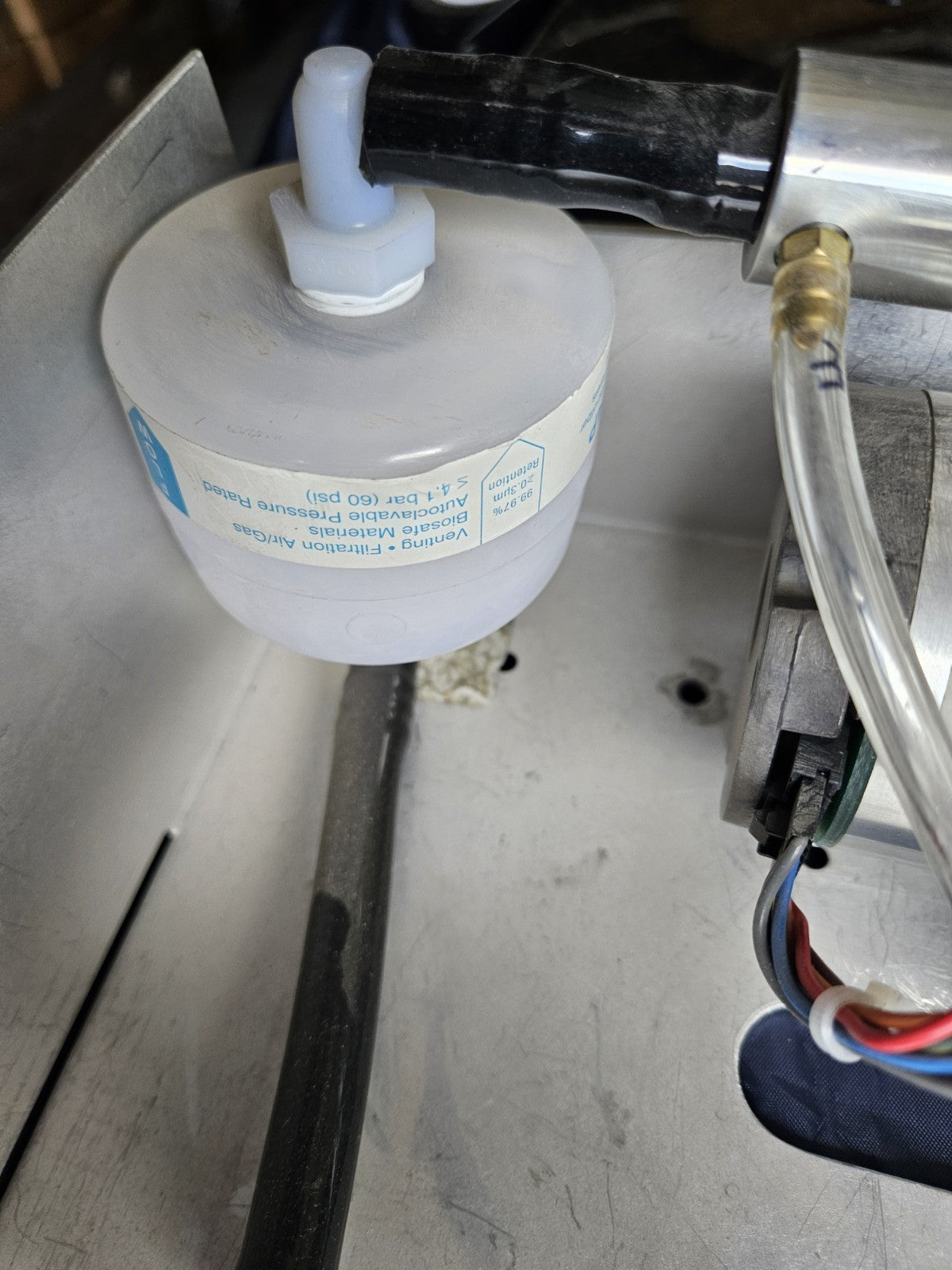

3. Filtration System ComponentsIn-Line Filter Unit 1 (Top Right): High-capacity white circular disposable capsule process filter with quick-connect white pneumatic ports (Stamped '150117' production batch code).In-Line Filter Unit 2 (Bottom Left): Base filter housing attached directly to the main lower pneumatic exhaust line to filter out microscopic environmental debris.
4. Mechanical Plumbing & Wiring HarnessFittings: Heavy-duty threaded solid brass elbow connectors.Pneumatic Lines: Industrial-grade thick black pressure tubing coupled with clear internal routing lines.Wiring: Factory-bundled multi-conductor wire harness with localized terminal blocks for fast drop-in integration.
ConditionUsed / Taken from decommissioned laboratory asset.
Structural bracket, internal brass hardware, circuitry, and core motor block are in good used physical condition with no signs of burnout or stress.
Has not been independently bench-tested after equipment extraction.
Sold As-Is / For Parts or Repair—ideal for medical facility spare replenishment or hardware engineering projects.
